Created with Pixso. 12 Fiber MPO/APC Singlemode Fiber Loopback Module for QSFP testing

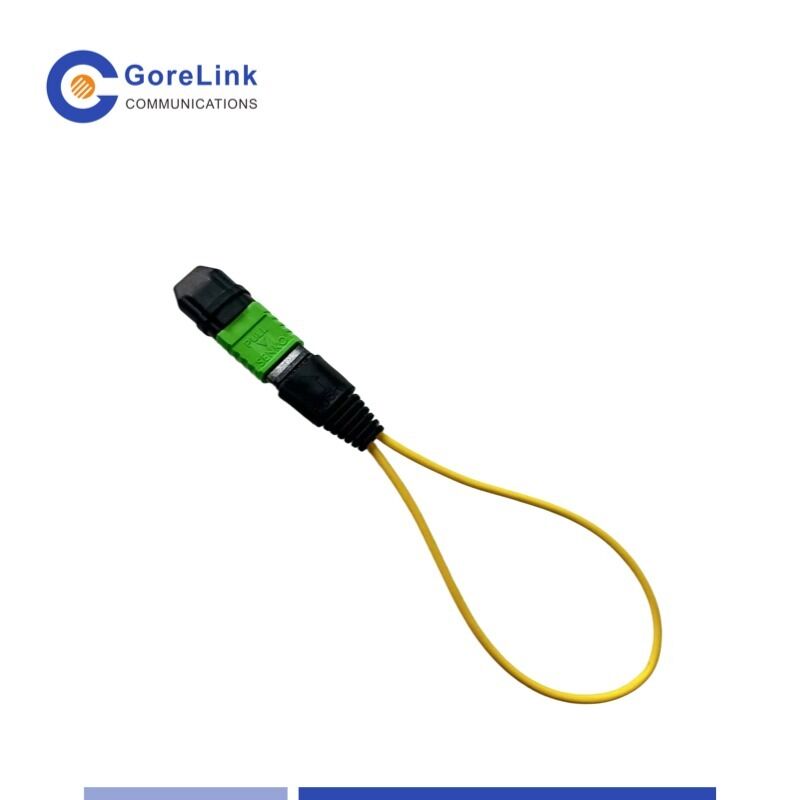

12 Fiber MPO/APC Singlemode Fiber Loopback Module for QSFP testing

ব্র্যান্ড নাম: GoreLink
মডেল নম্বর: G4431
MOQ: 1 পিসি
বিতরণ সময়: 1-3 কার্যদিবস
অর্থ প্রদানের শর্তাবলী: টি/টি, ওয়েস্টার্ন ইউনিয়ন, পেপ্যাল
বিস্তারিত তথ্য
উৎপত্তি স্থল:
চীন
পণ্য:
এমপিও এসএম ফাইবার অপটিক লুপব্যাক মডিউল
বৈশিষ্ট্য:
উচ্চ-গতির অপটিক্যাল নেটওয়ার্ক পরীক্ষার জন্য উপযুক্ত
অংশ নং।:
GL-MLB-12SMF
সংযোগকারী প্রকার:
এমপিও/এপিসি মহিলা
ফাইবার টাইপ:
একক
রঙ:
সবুজ
সন্নিবেশ ক্ষতি:
≤0.35db
অপারেটিং তাপমাত্রা:
-20 ~ +75°C
স্টোরেজ তাপমাত্রা:
-40~+85℃
প্যাকেজিং বিবরণ:
1 পিসি/ব্যাগ
বিশেষভাবে তুলে ধরা:

12 fiber MPO/APC loopback module

,

single mode fiber loopback for QSFP

,

MPO/APC fiber testing tool

পণ্যের বর্ণনা
12 Fiber MPO/APC Singlemode Fiber Loopback Module for QSFP Testing
Overview
The MPO Fiber Loopback Module is engineered for comprehensive fiber optic network testing, signal routing, and transceiver verification in high-speed communication systems. This essential testing tool is widely deployed in data centers, telecommunication networks, and optical transmission systems to validate signal continuity and assess network performance.
Featuring high-quality MPO/MTP connectors and precision fiber alignment, this loopback module delivers stable optical performance with minimal insertion loss. It serves as an ideal solution for 40G/100G optical transceiver testing, switch verification, and comprehensive network diagnostics.
Applications
  • Data center cabling systems
  • 40G/100G transceiver testing
  • QSFP module verification
  • Optical switch testing
  • Telecom networks
  • Fiber optic diagnostics and maintenance
Key Features
  • MPO/MTP connector interface
  • Low insertion loss and stable performance
  • High-density fiber connectivity
  • Compact and durable design
  • Plug-and-play installation
  • Suitable for high-speed optical network testing
Technical Specifications
Fiber Loopback Type MPO loopback
Fiber Structure 12F
Fiber Mode Singlemode
Polish Type APC
Insertion Loss ≤0.35dB
Fiber Connector Female
Housing Color Green
Compliance Telcordia GR-326-CORE
12 Fiber MPO/APC Singlemode Fiber Loopback Module for QSFP testing 0
Documentation
Download Datasheet
Ordering Information
Part Number Description
GL-MLB-12SMF 12F SM MPO Loopback, Standard loss, Female
For further assistance, please contact us at sales@gorelink.com
