Application

• Premise wiring

• Voice/Data

• Local Area Networks

• FTTH

General Specification

• 7s fast fusion splicing, 18s highly efficient heating.
• 320 times image magnification, 5mm fusion splicing for fibers of ultra-short cutting length
• 300 groups of fusion splicing modes, 100 groups of heating modes
• 10000 groups of fusion records, 64 images storage
• Ceramic presser foot, ceramic V-block, all-in-one fixture
• Dual-direction splicing, automatic splicing, and intelligent pyrocondensation
• USB and SD card interfaces, U-disk automatic software upgrade
• Built-in modular lithium battery, supports 220 times of splicing and heating cycles.

Features

• Small and light
• Water-resistant, dust-resistant and shock-resistant in design
• Water-resistant and dust-resistant can meet IP52 requirements.
• The all-in-one fixture meet fusion splicing demands of multiple fibers, jumpers and rubber-insulated wires with a cladding diameter of 80~150μm.
• Graphical interfaces and touch screen

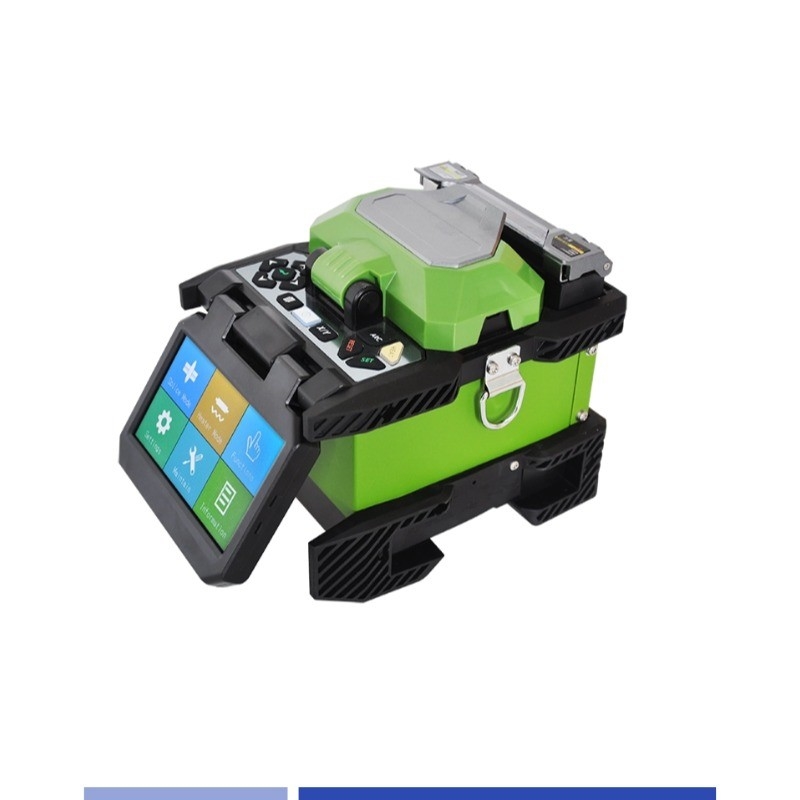

This splicer uses entirely new GUI graphical interfaces and touch screen in design. Operators can set up the splicer and get to know relevant information of it simply and directly by graphical interfaces.

• Intelligent heat shrinkage

A detection unit is embedded in the heater. The heating function will only be enabled when the thermal shrinkage tube is put in the heater, to avoid misoperation

• Large-capacity pluggable lithium battery

The built-in pluggable lithium battery with large capacity can answer working demand lasting all day long (typical 220 times of fusion splicing and heating cycles).

• Ceramic V-block and ceramic presser foot

Ceramic V-block with high precision brings you convenient and accurate placement of optical fibers and makes cleanup easy.

• Multi-functional carrying case

The multi-functional carrying case is novel in design and light in weight, has built-in compact working bench. Open or close the cover can turn it to a working bench.

Download Datasheet

Ordering Information

If you have any further questions, please feel free to contact us by sales@gorelink.com
