Created with Pixso. LC Quad Fiber Optic Adapter with anti laser shutter Singlemode Quad without flange

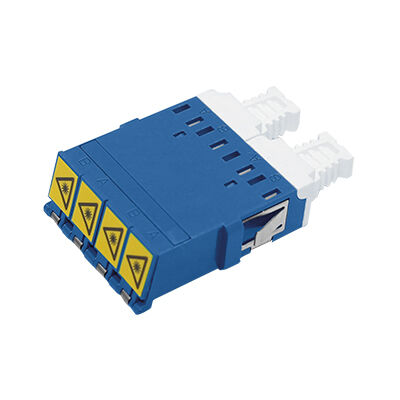

LC Quad Fiber Optic Adapter with anti laser shutter Singlemode Quad without flange

ব্র্যান্ড নাম: GoreLink
মডেল নম্বর: G419-144
MOQ: 1 পিসি
বিতরণ সময়: 1-3 কার্যদিবস
অর্থ প্রদানের শর্তাবলী: টি/টি, ওয়েস্টার্ন ইউনিয়ন, পেপ্যাল
বিস্তারিত তথ্য
উৎপত্তি স্থল:
চীন
পণ্য:
ফাইবার অপটিক অ্যাডাপ্টার
আবেদন:
FTTX/টেলিকমিউনিকেশন
লেজার সুরক্ষা:
অ্যান্টি-লেজার শাটার সহ
অংশ নং:
G419-144
অ্যাডাপ্টার প্রকার:
এলসি/ইউপিসি
ফাইবার গণনা:
চতুর্ভুজ
ফাইবার টাইপ:
একক
তরঙ্গদৈর্ঘ্য:
1310nm
রঙ:
নীল
ফ্ল্যাঞ্জ:
ফ্ল্যাঞ্জ ছাড়া
সন্নিবেশ ক্ষতি:
≤0.3dB
রিটার্ন লস:
≥50 ডিবি
হাতা:
জিরকোনিয়া
হাউজিং উপাদান:
প্লাস্টিক
অপারেটিং তাপমাত্রা:
-40~+75℃
স্টোরেজ তাপমাত্রা:
- 40~+85℃
প্যাকেজিং বিবরণ:
25pcs/Pkt
বিশেষভাবে তুলে ধরা:

LC quad fiber optic adapter

,

singlemode quad adapter with shutter

,

fiber optic adapter without flange

পণ্যের বর্ণনা
LC Quad Fiber Optic Adapter with anti laser shutter Singlemode Quad without flange
This LC UPC quad fiber adapter is a high-density, multi-fiber optical terminator designed to safely and simultaneously terminate four independent laser outputs. It is engineered for use with LC Quad (4-fiber MPO-based) trunk systems commonly found in modern high-speed data centers (40G/100G/400G Ethernet), central offices, and any environment using parallel optics. This device ensures laser safety, protects sensitive transceivers from back-reflection, and maintains network integrity.
Application
  • FTTH access network
  • Telecommunication Networks
  • CCTV Networks
  • Data Center
  • Local Area Networks
General Specification
Fiber Adapter Type LC
Body Style Quad(4-fiber)
Fiber Mode Singlemode
Polish Type UPC
Insertion Loss ≤0.3dB
Mounting Type Without Flange
Housing Color Blue
Durability >1000 times
Alignment Sleeve Material Ceramic
Flammability Rate UL94-V0
Compliant Telcordia GR-326-CORE
LC Quad Fiber Optic Adapter with anti laser shutter Singlemode Quad without flange 0
Ordering Information
PART NO. G419-144
DESCRIPTION Fiber Optic Adapter,Anti Laser LC/UPC Singlemode Quad without flange
If you need any further assistance, please feel free to contact us at sales@gorelink.com.
